Compare two workbooks in Excel and display the differences

Created by: Tact System Co., Ltd.
© 2018 TACT SYSTEM Co. Ltd. All Rights Reserved.
URL: https://www.tactsystem.co.jp
mailto: tactcmb2@tactsystem.co.jp

There are two versions: AppleScript and VBA.

AppleScript version

Microsoft Excel for Mac 2011
Place this script in Users/[user name]/Documents/Microsoft User Data/Excel Script Menu Items.
Microsoft Excel for Mac 2016
Place this script in Users/[user name]/Library/Scripts/Applications/Excel/.

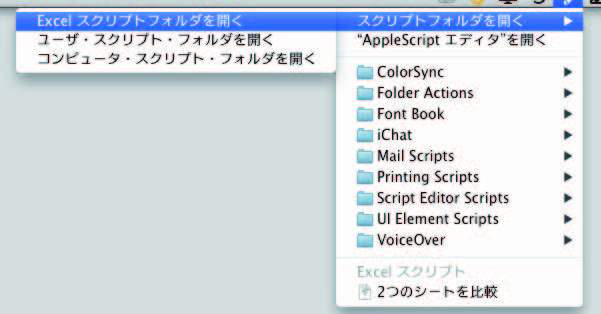

* With Excel active, select “Open Scripts Folder” -> “Open Excel Scripts Folder” from the script menu to access.

How to use

With the two Excel documents you want to compare open, select Compare Two Sheets from the script menu.

VBA version

Installation

Since this is an Excel Macro-Enabled Workbook, place the workbook anywhere you like.

How to Use

With the two Excel documents you want to compare open, run CompareTwoSheets from the macro.
Alternatively, click on this yellow shape.

Specifications

Microsoft Excel is operated using a macro (VBA).
If there are not two or more workbooks open, an alert dialog will appear and the program will end.
Compares the active sheets of two open workbooks, counting from the beginning.
The range of cells in the sheet is the range used in the worksheet.
The two sheets are copied to a new workbook.

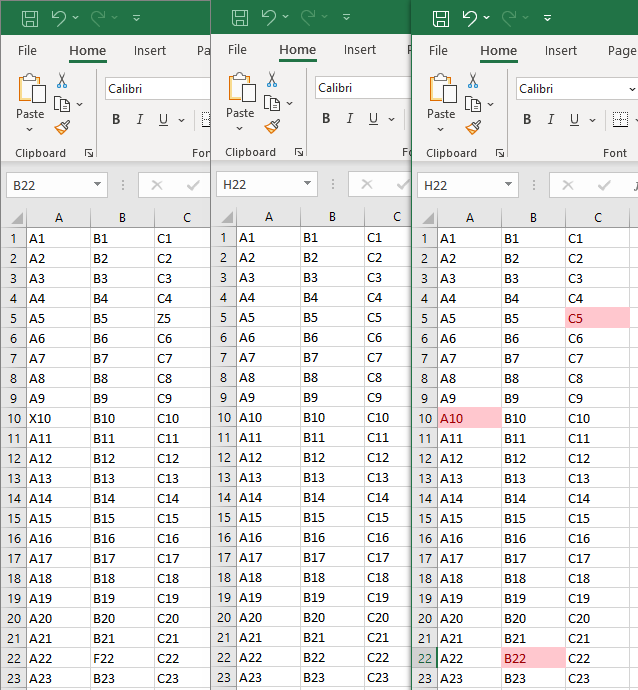

Sets conditional formatting to check whether the values of cells with the same address in each of the two sheets match.
If the cell values are different, dark red text, light red background will be applied.
The original workbook will not be changed.
Operating environment
Recommended operating environment: OS X Mavericks (10.9.5) / Windows
Target application: Microsoft Excel 2011 or later

VBA macro

Sub CompareTwoSheets()
    Dim WorkbookCount As Long
    WorkbookCount = Workbooks.Count

    If WorkbookCount <= 2 Then
        MsgBox "open 2 workbooks.", vbCritical
        Exit Sub
    End If

    Dim bookNames(1 To 3) As String
    Dim n As Long
    n = 1
    For Each Wb In Workbooks
    If Wb.Name <> ThisWorkbook.Name Then
        bookNames(n) = Wb.Name
        n = n + 1
    End If
    If n >= 3 Then
        Exit For
    End If
    Next Wb

    Workbooks(bookNames(1)).ActiveSheet.Copy
    bookNames(3) = ActiveWorkbook.Name

    Dim cellStartAddress1 As String
    cellStartAddress1 = Workbooks(bookNames(3)).Worksheets(1).UsedRange.cellS(1).Address(False, False, xlA1, True)

    Workbooks(bookNames(2)).ActiveSheet.Copy after:=Workbooks(bookNames(3)).Worksheets(1)

    Dim cellStartAddress2 As String
    cellStartAddress2 = Workbooks(bookNames(3)).Worksheets(2).UsedRange.cellS(1).Address(False, False, xlA1, True)

    With Workbooks(bookNames(3)).Worksheets(2)
        .Activate
        With .UsedRange
            .cellS.FormatConditions.Delete
            .FormatConditions.Add Type:=xlExpression, Formula1:="=" + cellStartAddress1 + "<>" + cellStartAddress2
            With .FormatConditions(1)
                .SetFirstPriority
                .Font.Color = RGB(156, 0, 6)
                .Interior.Color = RGB(255, 199, 206)
               .StopIfTrue = False
            End With
        End With
    End With
End Sub

---

Click here to download the script.
