Script UI

Script UI bugs

Important note: unfortunately, after CS6 it was no longer possible to change fonts or type size in ScriptUI panels and dialogs.

ScriptUI EditText with custom border (Win & Mac) by Marc Autret

On Mac OS, the EditText widget is subject to a specific focus ring wich automatically allocates 2 or 3 additional transparent pixels all around the field! Hence, if the control is nested within a background-colored group, that color is revealed through this additional space.
 From that point you need to apply two fixes:
(1) create a white subgroup between the outer group and the EditText to make sure that the revealed background fits the EditText background
(2) make the EditText borderless to inhibits its own stroke.

// ScriptUI EditText with custom border (Win & Mac)
// ==========================

var STROKE_COLOR = [1,0,0],    // red
    STROKE_WEIGHT = 1,        // in pixels
    FILL_COLOR = [1,1,1],    // white
    INSET_SPACE = 3;        // in pixels -- Mac OS focus ring needs it >=3

var u,
    w = new Window('dialog'),
    // ---
    gBorder = w.add('panel').add('group'),
    gSpacer = gBorder.add('group'),
    e = gSpacer.add('edittext', u, u, {borderless:true}),
    // ---
    bCancel = w.add('button', u, "Cancel"),
    // ---
    gx = w.graphics,
    SOLID_BRUSH = gx.BrushType.SOLID_COLOR;

// Edit field settings
// ---
e.characters = 12;
gBorder.margins = STROKE_WEIGHT;
gBorder.graphics.backgroundColor = gx.newBrush(SOLID_BRUSH, STROKE_COLOR );
gSpacer.margins = INSET_SPACE;
gSpacer.graphics.backgroundColor  = e.graphics.backgroundColor = gx.newBrush(SOLID_BRUSH, FILL_COLOR );

w.show();

Underlined StaticText by Marc Autret

var u,
    w = new Window('dialog', "Underline Me!"),
    s1 = w.add('statictext', u, "Not Underlined"),
    s2 = w.add('statictext', u, "Underlined"),
    b = w.add('button', u, "OK"),
    // ---
    wgx = w.graphics,
    linePen = wgx.newPen(wgx.PenType.SOLID_COLOR,[0,0,0], 1);

s2.preferredSize[1] += 3;

s2.onDraw = function(/*DrawState*/)
{
    var gx = this.graphics,
        sz = this.preferredSize,
        y = sz[1]-1;

    gx.drawOSControl();
    gx.newPath();
    gx.moveTo(0, y);
    gx.lineTo(sz[0],y);
    gx.strokePath(linePen);
};

w.show();

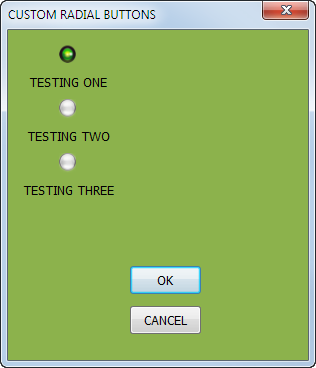

Custom Radial Buttons by Brett Gonterman

Click here to download.

ScriptUI Tips and Tricks by Marc Autret

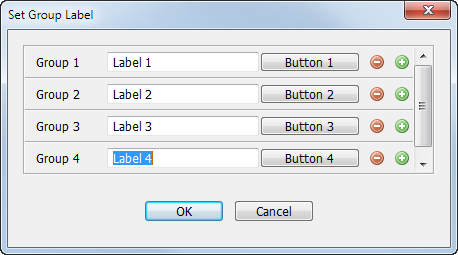

testScroller.js by Marc Autret — Demonstrates ScriptUI Scrollbar usage


Scrollable panel

TIP (by Peter Kahrel): A good alternative to a scrollable panel is a multi-column list. Scrolling is handles automatically. Much easier to code.

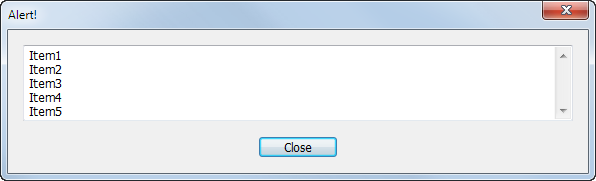

Scrollable alert by Marijan Tompa

Scrollable panel group in scriptUI

Scrolling panel by Bob Stucky

Interactive scrollable panel by Luis Felipe Corullón


Understanding myWidget.onDraw

Updating Image widgets

Apply a custom border to an EditText

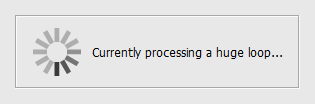

Spin progress bar by Marc Autret

ScriptUI Fonts Facts

ScriptUI Custom Eventsnew UIEvent(…) works fine in InDesign (CS4/CS5/CS6) provided that you let the view parameter undefined.

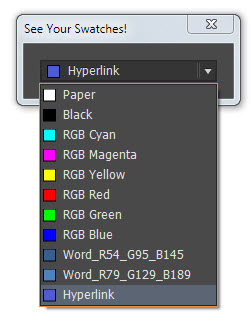

See Your Swatches in ScriptUI by Marc Autret

This function fails on spot colors that are imported with placed files — e.g. eps or ai — when the script attempts to change the space to RGB on the following line:

color.space = RGB;

The original discussion is here.

Example of a dynamic “folder” dialog box

PNG creator function by Jongware

ScriptUIGraphics capabilities example by Marc Autret

Online ScriptUI dialog builder by Joonas Pääkkö — the offline version is here.
